Simpson Strong-Tie WT Series WT8 Wedge Form Tie, 8 in Dimensions, 18 ga, Steel, Galvanized
- Model Number: WT8
- UPC: 044315925405
- San Lorenzo SKU: 240727
-
Simpson Strong-Tie WT Series WT8 Wedge Form Tie, 8 in Dimensions, 18 ga, Steel, Galvanized
-
Promo Price:
-
- Alternate Item #: SSTWT8
- Web SKU: 100319314
Simpson Strong-Tie WT8

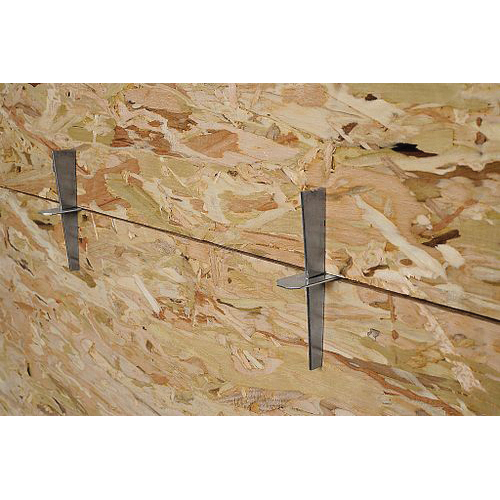

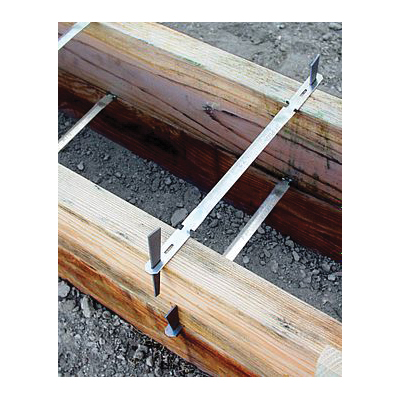

The wedge tie (WT) is a form tie that secures concrete forms in place while the concrete is poured. It easily installs between form boards and accurately spaces the forms. Several models are available for varying wall thickness and types of form boards. Designed for low foundation wall applications. 5/8 in wide formed V design for rigidity allows accurate form spacing and support. Sizes now available for composite form board.
| Dimensions | : | 8 in |
| Finish | : | Galvanized |
| Material Gauge | : | 18 ga |
| Material | : | Steel |
| Suitable For | : | 8 in THK Walls |
- Designed for low foundation wall applications
- 5/8 in W formed "V" design for rigidity allows accurate form spacing and support
- Two W1 wedges required for each tie
- Not recommended for wall pours greater than 4 ft high
- Use with nominal 2X form board
- Galvanized (G90) for extra corrosion resistance
Specification Sheet
