Simpson Strong-Tie

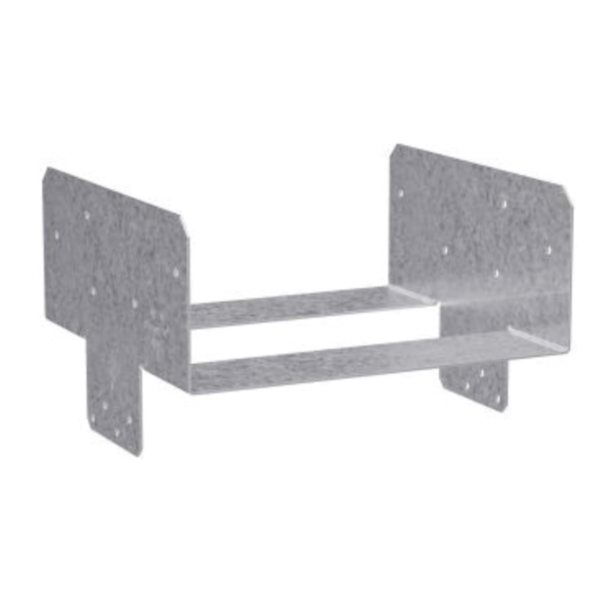

Simpson Strong-Tie PC8Z Post Cap, 1435 lb Uplift, 1230 lb Lateral, 8 x 8 in Post/Joist, Steel, ZMAX
- Model Number: PC8Z
- UPC: 707392632528
- Dixieline SKU: 241294
-
Simpson Strong-Tie PC8Z Post Cap, 1435 lb Uplift, 1230 lb Lateral, 8 x 8 in Post/Joist, Steel, ZMAX
-
Promo Price:
-
- Alternate Item #: SSTPC8Z
- Web SKU: 100319544
Simpson Strong-Tie PC8Z
PCZ/EPCZ post caps are designed with their post and beam flanges in-line so that one PCZ/EPCZ model can accommodate several post sizes. The PCZ/EPCZ uses 0.148 in x 3 in nails. An alternate choice of fastener is the #9 x 1 1/2 in Strong-Drive® SD connector screw. ZMAX® finish is standard to meet exposure conditions in many environments.
| Weight Capacity | : | 1435 lb Uplift, 1230 lb Lateral |
| Width | : | 7-1/2 in |
| Post/Joist Size | : | 8 x 8 in |
| Finish | : | ZMAX |
| Material | : | Steel |
Specification Sheet
