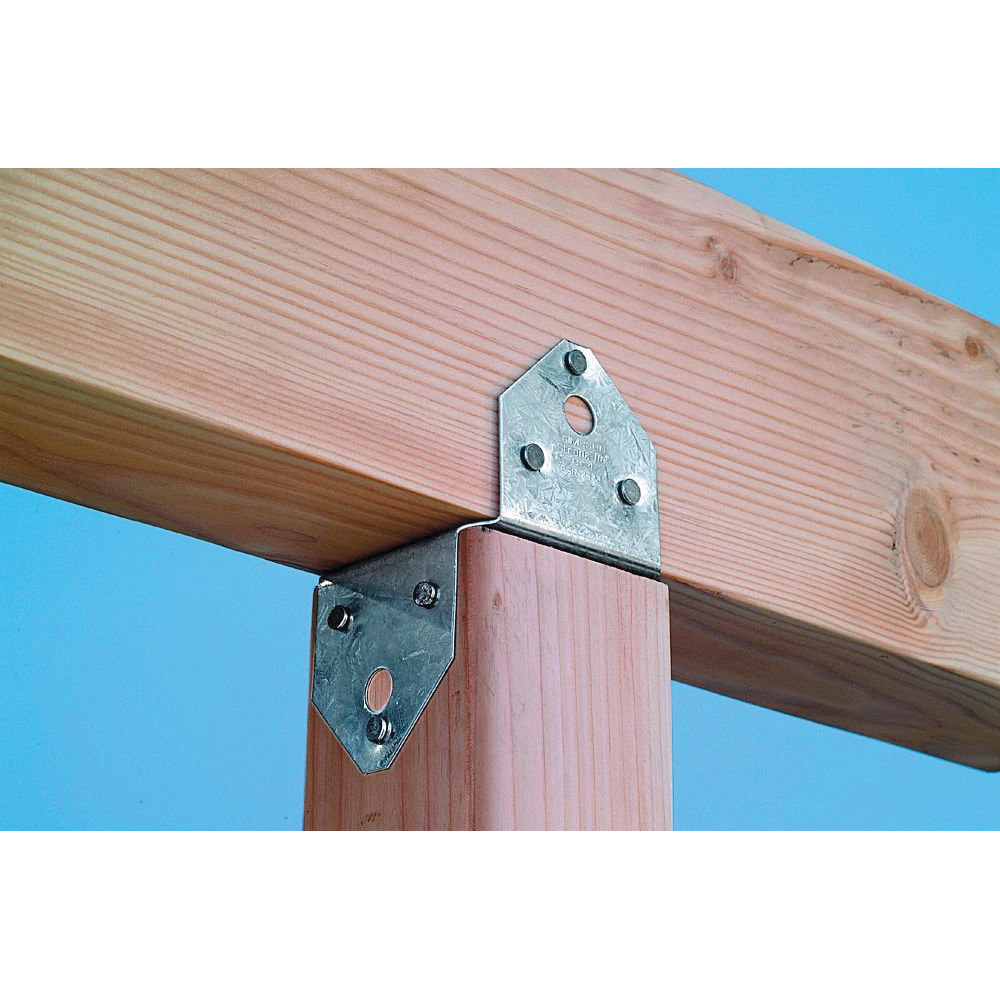

Simpson Strong-Tie BC46Z
The BCS allows for the connection of two 2X's to a 4X post or three 2X's to a 6X post. double-shear nailing between beam and post gives added strength. The BC Series offers dual-purpose post cap/base for light cap or base connections.
| Fastener Type | : | Common Nail |
| Height | : | 3-1/2 x 2-1/2 in |
| Length | : | 4-7/8 x 2-7/8 in |
| Shear Strength | : | 1000 lb |
| Tensile Strength | : | 945 lb |
| Weight Capacity | : | 1000 lb Lateral, 946 lb Uplift |
| Width | : | 3-9/16 x 5-1/2 in |
| Post/Joist Size | : | 4 x 6 in |
| Finish | : | ZMAX |
| Material | : | Steel |
| Nail Diameter | : | 0.162 in |
- Opposing flanges provide increased lateral resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
- Light-gauge material designed for light-duty applications
